| Image Sensor |
1/2.8" CMOS |
| Signal System |
PAL/NTSC |
| Min. Illumination |
Color: 0.002lux@ (F1.5, ACG ON), BW: 0lux with IR |
| Shutter Time |
1s to 1/100,000s |
| Day & Night |
Dual IR Cut Filter |
| Wide Dynamic Range |
140dB |
| Optical Zoom |
25× |
| Digital Zoom |
16× |
| Lens |
|
| Focal Length |
4.8mm~120mm |
| Zoom Speed |
<5s |
| Angle of View |
Horizontal filed of view: 58.5° (w)~2.8° (t) |
| Aperture Range |
F1.5~F3.8 |
| Pan&Tilt |
|
| Pan Range |
360° |
| Pan Speed |
Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 240°/s |
| Tilt Range |
-16°~90° (Auto flip) |
| Tilt Speed |
Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s |
| 3D Position |
Yes |
| Presets |
500 |
| Preset Accuracy |
±0.3° |
| Scan |
8 |
| Cruise |
16, up to 32 presets per cruise |
| Pattern |
8, each with 600s memory or 1000 orders |
| Power-off Memory |
Yes |
| RS-485 Protocols |
N/A |
| Illuminator |
|
| IR LEDs |
6 |
| IR Range |
Up to 150m |
| IR Irradiation Angle |
Adjustable by Zoom |
| White LEDs |
N/A |
| Compression Standard |
|
| Video Compression |
S+265/H.265/H.264/M-JPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Audio Compression |
G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate |
8K~48Kbps |
| Image |
|
| Max. Resolution |
1920×1080 |
| Main Stream |
PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 704×480, 640×480) |
| NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×576, 704×480, 640×480) |
| Sub Stream |
PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| Third Stream |
PAL: 25fps (352×288) NTSC: 30fps (352×240) |
| Image Setting |
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement |
BLC/3D DNR/HLC |
| ROI |
7 Dynamic Areas for Both Main and Sub Stream |
| OSD |
16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay |
Yes |
| Privace Mask |
Yes |
| Smart Defog |
Yes |
| Feature |
|
| Alarm Trigger |
Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection |
| Video Analytics |
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost |
| Early Warning(EW) |
N/A |
| Auto-Tracking |
N/A |
| Network |
|
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE |

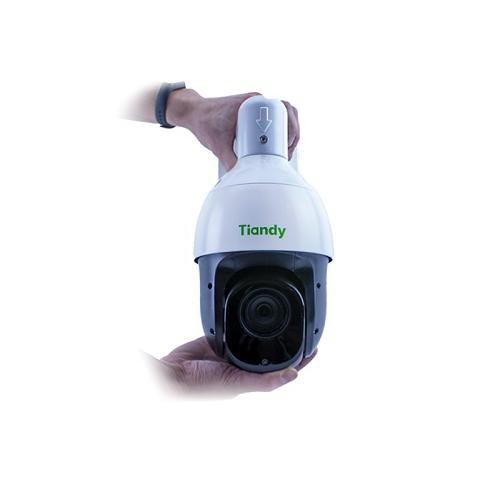

Reviews - Đánh giá Camera Tiandy PTZ 2MP TC-H324S Spec:25X/I
