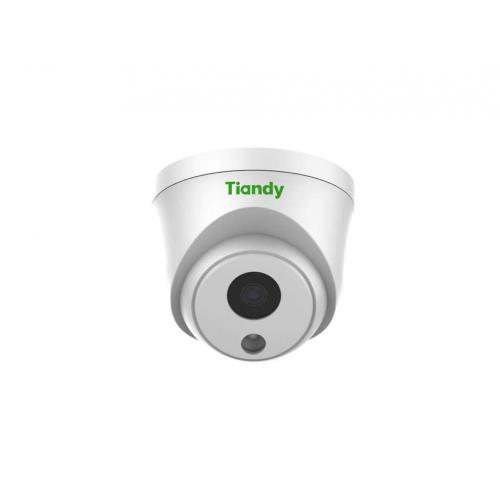

Camera Tiandy 5mp TC-C35HS Spec: I3/E/M/2.8mm

Camera

Image Sensor

1/2.8" CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR

Shutter Time

1s to 1/100,000s

Day & Night

Dual IR Cut Filter with Auto Switch

Wide Dynamic Range

120dB

Angle Adjustment

pan 0~340°, tilt 0~75°, roate 0~360°

Lens

Lens Type

Fixed

Focus

2.8mm

Lens Mount

M12

Aperture

F1.6, Fixed

FOV

Horizontal field of view: 97.8°

Illuminator

IR LEDs

1

IR Range

Up to 30m

Wavelength

850nm

White LEDs

N/A

Compression Standard

Video Compression

S+265/H.265/H.264/M-JPEG

Video Bit Rate

32Kbps~16Mbps

Audio Compression

G.711A/G.711U/ADPCM/AAC

Audio Bit Rate

8K~48Kbps


Max. Resolution

2592x1944

Main Stream

PAL: 20fps (2592×1944), 25fps (2560×1920, 2592×1520, 2560×1440, 2048×1536, 1920×1080, 1280×

960, 1280×720)

NTSC: 20fps (2592×1944), 25fps (2560×1920), 30fps (2592×1520, 2560×1440), 30fps (2048×1536,

1920×1080, 1280×960, 1280×720)

Sub Stream

PAL: 25fps (704×576, 704×288, 640×360, 352×288)

NTSC: 30fps (704×480, 704×240, 640×360, 352×240)

Third Stream

4CIF

Image Setting

Saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Image Enhancement

BLC/3D DNR/HLC/Corridor Format

ROI

Support 7 fixed region of coding

OSD

16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total

5 Regions

Picture Overlay

Yes

Privace Mask

Yes

Smart Defog

Yes

Feature

Alarm Trigger

Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception

Video Analytics

Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, Video Abnormal, Audio Abnormal, Face Detection, Demographics, On Duty Detection

Early Warning(EW)

N/A

Intelligent Coding

N/A

Intelligent Image

N/A

Intelligent Alarm

N/A

Network

ANR

N/A

Protocols

TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE

System Compatibility

ONVIF (PROFILE S), SDK, CGI, P2P

Remote Connection

≤7

Client

Easy7, EasyLive

Web Version

Web6

Interface

Communication Interface

1 RJ45 10M/ 100M self adaptive Ethernet port

Audio

Mic in

Alarm

N/A

Reset Button

Yes

On-board storage

N/A

General

Firmware Version

-

Web Client Language

11 languages

English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai,

French, Polish

Operating Conditions

-35℃～65℃, 0～95% RH

Power Supply

DC12V±20%/PoE

Power Consumption

MAX: 5.5W(12V) MAX: 6.5W(POE)

Protection

IP66

Heater

N/A

Dimensions

Φ117×96 mm (Φ4.61*3.78 inch)

Weight

0.45Kg (0.99lb)
