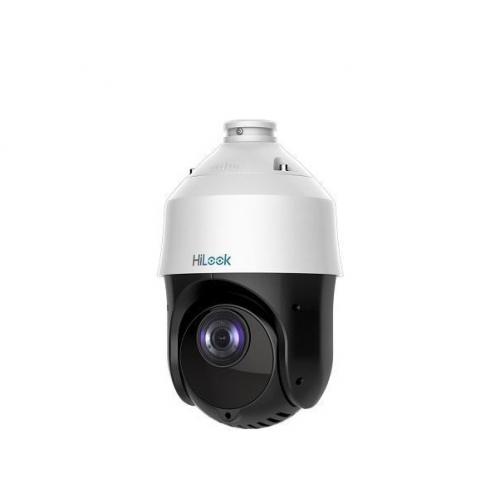

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HILOOK PTZ-N4225I-DE(B)
- Cảm biến hình ảnh: 1/2.8-inch Progressive CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Độ nhạy sáng: 0.005Lux@F1.6 (Chế độ màu); 0.001Lux@F1.6 (Đen/trắng).
- Tầm quan sát hồng ngoại: 100 mét.
- Zoom quang: 25x.
- Zoom số: 16x.
- Tích hợp khe cắm thẻ nhớ, dung lượng tối đa 256GB.
- Hỗ trợ 4 vùng ROI, 24 mặt nạ riêng tư.
- Hỗ trợ 300 preset, 8 patrol, 4 pattern.
- Hỗ trợ chức năng chống ngược sáng WDR 120dB.
- Hỗ trợ 3 luồng dữ liệu, cho phép tối đa 20 người truy cập cùng lúc.
- Tiêu chuẩn chống bụi và nước: IP66 (Thích hợp sử dụng trong nhà và ngoài trời).
- Chức năng cung cấp nguồn qua Ethernet (PoE).
- Nguồn điện: DC12V.
- Chất liệu: Kim loại.
Đặc tính kỹ thuật
Camera quan sát | |
Image Sensor | 1/2.8-inch Progressive Scan CMOS |
Effective Pixels | 1920(H)x1080(V) |
Signal System | PAL/NTSC |
Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lam |
AGC | Auto/Manual |
BLC | ON/OFF |
HLC | Support |
Smart defog | Support |
WDR | 120dB |
Shutter Time | 1/1s to 1/30,000s |
Day& Night | ICR |
Digital Zoom | 16× |
Privacy Masking | 24 privacy masks programmable |
Auto Focus | Auto / Semi-automatic / Manual |
Lens | |
Focal Length | 4.8 mm to 120 mm, 25× optical |
Zoom Speed | Approx. 3.2 s (optical lens, wide-tele) |
Angle of View | Horizontal field of view: 57.6° to 2.5° (wide-tele) Vertical field of view: 34.4° to 1.4° (wide-tele) Diagonal field of view: 64.5° to 2.9° (wide-tele) |
Minimum Working Distance | 10 mm to 1500 mm (wide-tele) |
Aperture Range | F1.6 to F3.5 |
Pan & Tilt | |
Pan Range | 360° continuous |
Pan Speed | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
Tilt Range | -15°-90° (Auto Flip ) |
Tilt Speed | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
Number of Preset | 300 |
Patrol | 8 patrols, up to 32 presets for each patrol |
Pattern | 4 pattern scans, record time over 10 minutes for each scan |
Power loss recovery | Support |
Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
PTZ Position Display | ON/OFF |
Infrared | |
IR Distance | 100m |
IR irradiation angle | Adjustable by zoom |
Network | |
Ethernet | 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional) |
Max.Image Resolution | 1920×1080 |
Main Stream | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) |
Sub Stream | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240) |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
ROI encoding | Support 4 areas with adjustable levels |
Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
No. of Simultaneous Users | Up to 20 users |
Three-Stream | Support |
Mini SD Card | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
User/Host Level | Up to 32 users, 3 levels: Administrator, Operator and User |
Security Measures | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
Hik-Connect | Support |
General | |
Menu Language | English |
Power Supply | 12 VDC &POE (802.3at,class4) |
Power Consumption | Max.: 18 W (IR Max.6 W) |
Working Temperature/Humidity | -30°C to 65°C (-22°F to 149°F) |
Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
Dimensions | Camera IP: Φ 165.9 mm × 290 mm (Φ 6.53' × 11.42') |
Weight (approx.) | Approx. 2 kg (4.41 lb) |
- Bảo hành: 24 tháng.
