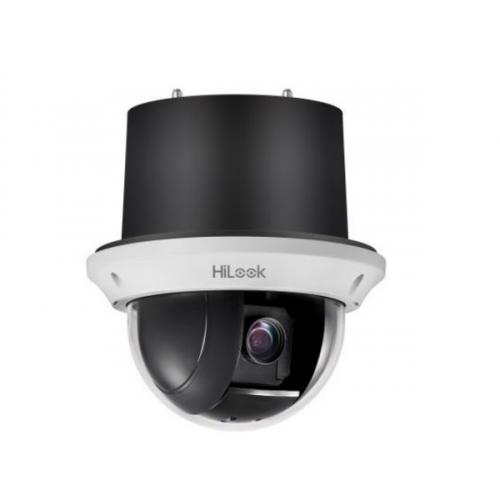

Camera IP Speed Dome 2.0 Megapixel HILOOK PTZ-N4215-DE3(B)
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Chuẩn nén hình ảnh: H.265+/H.265.
- Ống kính: 5~75 mm.
- Zoom số: 16x.
- Zoom quang: 15x.
- Độ phân giải: 1920 × 1080@30/25fps.
- Độ nhạy sáng Color: 0.005 Lux @(F1.6, AGC ON).
- Góc quay: 0°~350°; Góc quét: 0°~90°.
- Hỗ trợ 8 Patrol, 300 preset.
- Chức năng chống ngược sáng WDR.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng chống sáng chói HLC.
- Chức năng quan sát ngày đêm ICR.
- Chức năng chống sương mù Defog.
- Chức năng ổn định hình ảnh điện tử EIS.
- Hỗ trợ thẻ nhớ tối đa 256GB.
- Hỗ trợ dịch vụ Hilook, tên miền cameraddns.
- Tính năng thông minh: Phát hiện xâm nhập, phát hiện vượt hàng rào ảo, vùng đi vào, vùng đi ra, di dời vật thể, hành lý bỏ quên.
- Nguồn cấp: 12VDC, PoE+.
Đặc tính kỹ thuật
Model | PTZ-N4215-DE3(B) |
Camera Module | |
Image Sensor | 1/2.8 inch progressive scan CMOS |
Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
White Balance | Auto/ Manual/ ATW (Auto-Tracking White Balance)/ Indoor/ Outdoor/ Fluorescent Lamp/ Sodium Lamp |
AGC | Auto/Manual |
Shutter Time | 1/1s to 1/30,000s |
Day & Night | IR Cut Filter |
Digital Zoom | 16× |
Privacy Mask | 24 programmable privacy masks |
Focus Mode | Auto/Semi-automatic/Manual |
WDR | 120dB |
Lens | |
Focal Length | 5 mm to 75 mm, 15× optical |
Zoom Speed | Approx. 2.4 s (optical lens, wide-tele) |
FOV | Horizontal field of view: 53.8° to 4.0° (wide-tele) Vertical field of view: 31.9° to 2.3° (wide-tele) Diagonal field of view: 60.4° to 4.6° (wide-tele) |
Working Distance | 10 mm to 1500 mm (wide-tele) |
Aperture Range | F1.6 to F3.0 |
PTZ | |
Movement Range (Pan) | 360° endless |
Pan Speed | Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s |
Movement Range (Tilt) | From 0° to 90° (Auto-flip) |
Tilt Speed | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
Proportional Zoom | Support |
Presets | 300 |
Patrol Scan | 8 patrols, up to 32 presets for each patrol |
Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
Power-off Memory | Support |
Park Action | Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan |
PTZ Position Display | Support |
Preset Freezing | Support |
Scheduled Task | Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust |
Compression Standard | |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.264+ | Support |
H.265 Type | Main Profile |
H.265+ | Support |
Video Bitrate | 32 kbps to 16384 kbps |
Smart Feature | |
Basic Event Detection | Motion Detection, Video Tampering Detection, Exception Detection |
Smart Event Detection | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
ROI encoding | Main stream, sub-stream and third stream respectively support two fixed areas |
Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
Image | |
Max. Resolution | 1920 × 1080 |
Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720) |
Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
Network | |
Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
Simultaneous Live View | Up to 20 channels |
User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
Interface | |
Network Interface | 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4) |
General | |
Power | 12 VDC and PoE+ (802.3at, class4) Max.: 18W (IR light 6W Max.) |
Working Environment | Working Temperature: -10°C to 55°C (14°F to 131°F) Working Humidity: ≤ 90% |
Protection Level | TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
Material | ADC12, PC, PMMA, SECC |
Dimensions | In-Ceiling Mounting Indoor Models: Φ165 mm × 168 mm Ceiling Mounting Indoor Models: Φ165 mm ×179.5 mm |
Weight | Approx. 2 kg (4.41 lb) |
- Bảo hành: 24 tháng.
