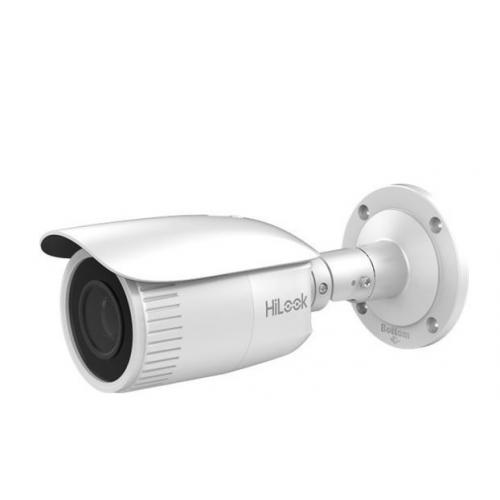

Camera IP hồng ngoại 2.0 Megapixel HILOOK IPC-B621H-Z
– Cảm biến hình ảnh: 1/2.8-inch Progressive scan CMOS.
– Độ phân giải camera ip: 2.0 Megapixel.
– Ống kính: Ống kính thay đổi tiêu cự 2.8~12mm.
– Tầm quan sát hồng ngoại: 30 mét.
– Chuẩn nén hình ảnh: H.265+/H265/H.264+ & H.264.
– Hỗ trợ 2 luồng dữ liệu.
– Hỗ trợ chức năng chống ngược sáng DWDR.
– Hỗ trợ chức năng giảm nhiễu số 3D DNR, bù sáng BLC.
– Chế độ ngày/đêm: Đặt theo lịch, tự động, ngày, đêm.
– Hỗ trợ khe cắm thẻ nhớ, tối đa 128GB.
– Hỗ trợ giám sát bằng ứng dụng HiLook trên điện thoại.
– Tiêu chuẩn chống bụi và nước: IP66 (Thích hợp sử dụng trong nhà và ngoài trời).
– Nguồn điện: DC12V.
– Chức năng cung cấp nguồn qua Ethernet (PoE).
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8-inch Progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.025 Lux @ (F1.9, AGC ON) |
| Shutter Speed | 1/3s to 1/100, 000s |
| Slow Shutter | Yes |
| Day &Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Focal length | 2.8 to 8 mm |
| Aperture | F1.9 |
| Focus | Auto |
| FOV | Horizontal field of view: 111° to 54.7° Vertical field of view: 57.8° to 30.5° Diagonal field of view: 134° to 63° |
| Lens Mount | Φ14 |
| IR | |
| IR Range | Up to 20 m |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream:H.265/H.264 Sub-stream:H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Region of Interest | 1 fixed region for main stream |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and ANR |
| Alarm Trigger | Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Firmware Version | 5.5.82 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface | |
| Audio | Built-in mic |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
| General | |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W |
| Protection Level | IP66 |
| Material | Front & Back cover: metal |
| Dimensions | Camera: Φ 105 mm × 244.4 mm (4.1inch × 9.6inch) With package: 315 mm × 137 mm × 141 mm (12.4inch × 5.4inch × 5.6inch) |
| Weight | Camera: Approx. 700 g (1.5 lb.) With package: Approx. 1100 g (2.4 lb.) |
– Bảo hành: 24 tháng.
