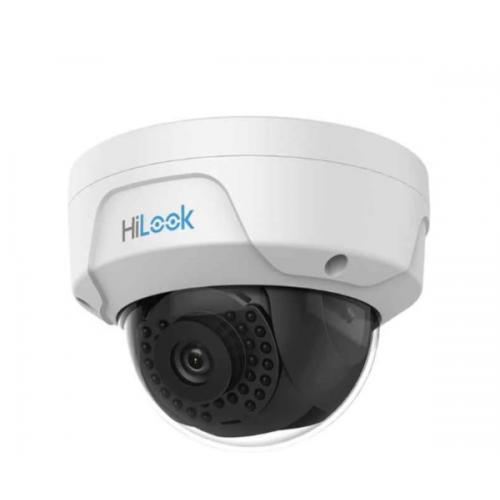

Camera IP Dome hồng ngoại 2.0 Megapixel HILOOK IPC-D121H-M
– Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
– Độ phân giải Camera IP: 2.0 Megapixel.
– Ống kính: 2.8mm/4.0mm.
– Tầm quan sát hồng ngoại: Lên tới 30 mét.
– Chuẩn nén hình ảnh: H.265+/H265/H.264+ & H.264.
– Hỗ trợ 2 luồng dữ liệu.
– Hỗ trợ chức năng chống ngược sáng DWDR.
– Hỗ trợ chức năng giảm nhiễu số 3D DNR, bù sáng BLC.
– Hỗ trợ chức năng chế độ ngày/đêm: Đặt theo lịch, tự động, ngày, đêm.
– Hỗ trợ giám sát bằng ứng dụng HiLook trên điện thoại.
– Hỗ trợ chức năng chỉnh góc theo 2 trục.
– Tiêu chuẩn chống bụi và nước: IP67 (Thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Hỗ trợ chức năng cũng cấp nguồn qua Ethernet (PoE).
– Nguồn điện: DC12V.
Đặc tính kỹ thuật
| Model Name | IPC-D121H-M |
| Camera | |
| Image Sensor | 1/2.8-inch progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) |
| Shutter Speed | 1/3s to 1/100, 000s |
| Slow Shutter | Yes |
| Day &Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
| Lens | |
| Focal length | 2.8 mm, 4 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | 2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5° 4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 30m |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG |
| H.264 Type | Main Profile/High Profile/Baseline Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Smart Feature-set | |
| Region of Interest | 1 fixed region for main stream |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Main Stream Max. Frame Rate |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-stream Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled, day, night |
| Network | |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Firmware Version | V5.5.83 |
| API | ONVIF (PROFILE S), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator, and User |
| Client | HiLookVision PC Client, HiLookVision App |
| Web Browser | IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| General | |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W |
| Ingress Protection | IP67, IK10 |
| Material | Bubble: plastic, front cover: metal, bottom base: metal |
| Dimensions | Camera: Ø 111 mm × 82.4 mm (Ø 4.4′ × 3.2′) With package: 134 mm × 134 mm × 108 mm (5.3′ × 5.3′ × 4.3′) |
| Weight | Camera: Approx. 460 g (1 lb.) With package: Approx. 660 g (1.5 lb.) |
– Bảo hành: 24 tháng.
