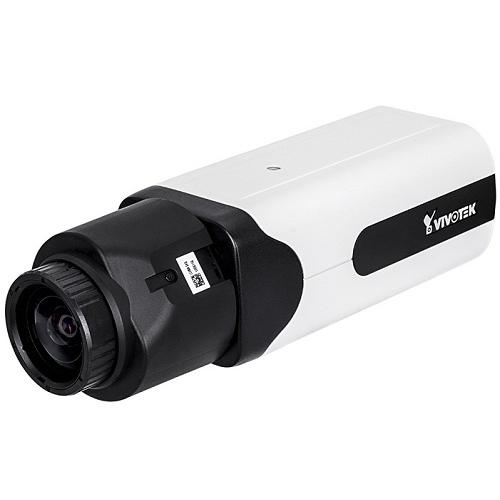

Camera IP 5.0 Megapixel Vivotek IP9181-H

    25.580.000₫

    Compression technology: H.265/ H.264 & MJPEG.

    Focal Length: f = 4.1~9 mm.

    Video streaming: Smart Stream II to optimize bandwidth efficiency.

    WDR Pro for unparalleled visibility in high contrast environments.

    Thông số kỹ thuật Camera IP 5.0 Megapixel Vivotek IP9181-H

    • Image sensor: 1/1.8 inch Progressive CMOS.
    • Resolution: 5.0 Megapixel.
    • Maximum Frame Rate: 30fps@ 2560 x 1920; 60fps@ 1920 x 1080.
    • Compression technology: H.265/ H.264 & MJPEG.
    • Focal Length: f = 4.1~9 mm.
    • Video streaming: Smart Stream II to optimize bandwidth efficiency.
    • WDR Pro for unparalleled visibility in high contrast environments.
    • Remote Back Focus for Easy Focus Adjustments.
    • SNV (Supreme Night Visibility) for Low Light Conditions.
    • Video Rotation for Corridor View.
    • Lens Profile to Ensure the Full Compatibility for Different Lens Options.
    • Gigabit Ethernet for High Speed of Transmission.
    • Snapshot Focus.
    • Support MicroSD/SDHC/SDXC slot.
    • Support 2-way Audio (full duplex).
    • Connectors: Digital input*3/ Digital output*1.
    • Power supply: 12VDC/ 24VAC/ PoE 802.3af/at (not included Adapter/ PoE).
    • Sản xuất tại Taiwan.
    • Bảo hành 24 tháng.

    Đặc tính kỹ thuật

    Model IP9181-H
    Camera Features
    Image Sensor 1/1.8 inch Progressive CMOS
    Maximum Resolution 2560 x 1920 (5MP)
    Lens Type Vari-Focal
    Focal Length f= 4.1 ~ 9 mm
    Aperture F1.6 ~ F2.4
    Field of View 46° ~ 90° (H); 35° ~ 68° (V); 58° ~ 117° (Diagonal)
    Shutter Time 1/5s ~1/32,000s
    WDR Technology WDR Pro
    Minimum Illumination 0.07 Lux @ F1.6 (Color); 0.001 Lux @ F1.6 (B/W)
    Day/Night Removable IR-cut filter for day & night function
    Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
    On-board Storage Slot Type: MicroSD/SDHC/SDXC card slot; Seamless Recording
    Video
    Compression H.265 & H.264 & MJPEG
    Maximum Streams 4 simultaneous streams
    Dynamic Range 100 dB
    Video Streaming Smart Stream II
    Image Settings  Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, video rotation, 3DNR, defog, Snapshot Focus, Lens Profile, DIS
    Audio
    Audio Capability Two-Way Audio (full duplex)
    Compression G711, G726
    Network
    Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
    Interface 10 Base-T/100 Base-TX /1000 Base-T Ethernet (RJ-45)
    General
    Power Input 12VDC/ 24VAC/ PoE 802.3af/at
    Power Consumption
    Dimensions (DxWxH) 210 x 70 x 63 mm
    Weight 766g
