Model |

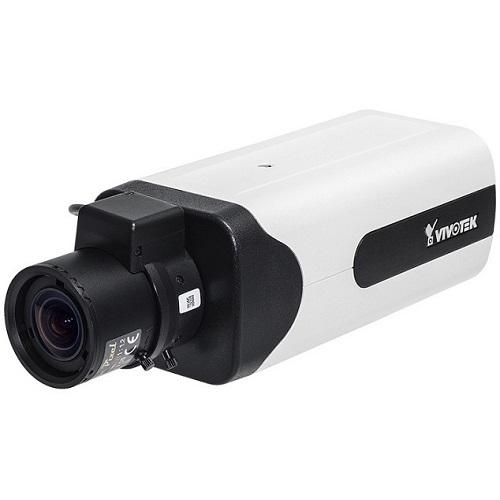

IP9171-HP |
Camera Features |
Image Sensor |
1/2.8 inch Progressive CMOS |
Maximum Resolution |
2048 x 1536 (3MP) |
Lens Type |
Vari-Focal |
Focal Length |
f= 2.8 ~ 8 mm |
Aperture |
F1.2 ~ F1.95 |
Field of View |
51° ~ 114° (H); 39° ~ 84° (V), 63° ~ 143° (Diagonal) |
Shutter Time |
1/5s ~1/16,000s |
WDR Technology |
WDR Pro, a True WDR |
Minimum Illumination |
0.01 Lux @ F1.2 (Color), 0.001 Lux @ F1.2 (B/W) |
Day/Night |
Removable IR-cut filter for day & night function |
Pan/Tilt/Zoom Functionalities |
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) |
On-board Storage |
Slot Type: MicroSD/SDHC/SDXC card slot; Seamless Recording |
Video |
Compression |
H.265 & H.264 & MJPEG |
Maximum Streams |
3 simultaneous streams |
Dynamic Range |
100 dB |
Video Streaming |
Smart Stream II |
Image Settings |
Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, video rotation, 3DNR, defog, Snapshot Focus, Lens Profile, DIS |
Audio |
Audio Capability |
Two-Way Audio (full duplex) |
Compression |
G711, G726 |
Network |
User |
Live viewing for up to 10 clients |
Protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
Interface |
10 Base-T/100 Base-TX /1000 Base-T Ethernet (RJ-45) |
General |
Power Input |
12VDC/ 24VAC/ PoE 802.3af/at |
Power Consumption |
<8.6W |
Dimensions (DxWxH) |
210 x 70 x 63 mm |
